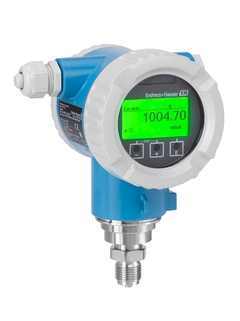

This transmitter belongs to the new Cerabar generation. The device is robust and can be remotely controlled via app on a tablet using a secure Bluetooth connection. It allows condition based maintenance as well.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.
Pressure measuring range: up to 40 bar (600 psi)
Fully vacuum resistant up to +150°C (302°F) process temperature
Accuracy: up to +/- 0.025%
With Heartbeat Technology you are able to verify the health of the device while the process is running.
Simple indication of device status - display changes from green to red when diagnostic messages occur
Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
Wireless control of the device in hard to reach process areas with the SmartBlue App
Standard:
up to 0.05 %
Platinum:
up to 0.025 %
-40°C...+150°C
(-40°F...+302°F)
100 mbar...40 bar
(1.5 psi...600 psi)
Ceraphire ceramic
FKM, EPDM, HNBR,
Perlast, Kalrez, Chemraz
Ceramic
100 mbar....40 bar
(1.5 psi...600 psi)
