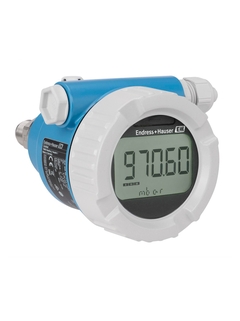

This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.
Pressure measuring range: up to 40 bar (600 psi)
Fully vacuum resistant up to +100°C (212°F) process temperature
Accuracy: up to +/-0.055%
Wireless control of the device in the process area with the SmartBlue App. Process interruption is not necessary.
Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
Standard:
up to 0.075 %
Platinum:
up to 0.055 %
-40°C...+100°C
(-40°F...+212°F)
100 mbar...40 bar
(1.5 psi...600 psi)
Ceraphire ceramic
FKM, EPDM, HNBR,
Perlast, Kalrez
Ceramic
100 mbar...40 bar
(1.5 psi...600 psi)
