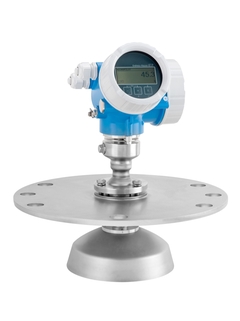

Micropilot FMR57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. The parabolic antenna facilitates very small emitting angles and thus the measurement in slim silos. Micropilot free space radar is used for continuous, non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
Horn or parabolic antenna. Thanks to the additional air purge connection even strongly dusting and build-up forming media do not present any problem.
Process connections: Thread or flange
Temperature: -40 to +400°C (–40 to 752°F)
Pressure: -1 to +16bar (-14.5 to +232psi)
Maximum measuring range: 70m (230ft)
K-band: 26GHz
International explosion protection certificates, SIL, 5-point linearity protocol
Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
Reliable measurement even for changing product and process conditions
World's easiest proof test concept for SIL and WHG saves time and cost
+/- 3 mm (0.12 in)
-40...+400 °C
(-40...+752 °F)
Vacuum...16 bar
(Vacuum...232 psi)
70 m (230 ft)
316L, PEEK, PTFE, Polyamid
