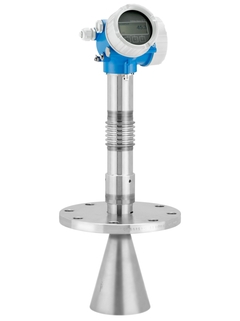

Micropilot FMR54 is prepared for the use in high temperature and high pressure applications and with the specially designed planar antenna it is particularly suited for stilling well applications. The FMR54 free space radar is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.
Horn antenna or planar antenna which is particularly suited for stilling well applications.
Process connection: Flange
Temperature: -196 to +400°C (-76 to +752°F)
Pressure: -1 to +160bar (-14.5 to +2,320psi)
Maximum measuring range: 20m (66ft)
Accuracy: ±6mm
C-band: 6GHz
International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol
Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
Reliable measurement even for changing product and process conditions
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
World's easiest proof test concept for SIL and WHG saves time and cost
+/- 6 mm (0.24 in)
-60...+400°C
(-76...+752°F)
Vacuum...160 bar
(Vacuum...2320 psi)
Standard: 20 m (65 ft)
Planar antenna in stilling well: 38 m (125 ft)
316L
