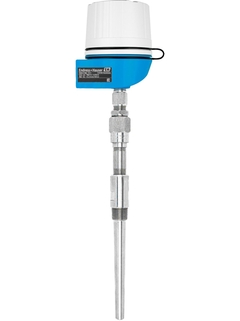

iTHERM ModuLine TM151 Industrial modular thermometer

Field of application

Modular industrial RTD or TC thermometer, complete with barstock thermowell or to be used with onsite thermowell. Available with Endress+Hauser temperature transmitters for enhanced accuracy and reliability - easy customizing by choosing the outputs and communication protocols. Optionally available with Bluetooth® connectivity. Thermometer featuring latest innovations such as iTHERM QuickNeck, and temperature sensor technologies like iTHERM QuickSens and iTHERM StrongSens.

Benefits

• Second process seal with failure indication offering valuable device health status information

• iTHERM QuickSens: fastest response times of 1.5 s for optimum process control

• iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety

• iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration

• Bluetooth® connectivity (optional)

• International certification: explosion protection according to ATEX, IECEx, CSA C/US and CCC

Specs at a glance

• Accuracy

  Class AA acc. to IEC 60751
  Class A acc. to IEC 60751
  Class B acc. to IEC 60751
  Class special or standard acc. to ASTM E230
  Class 1 or 2 acc. to IEC 60584-2

• Response time

  depending on configuration

• Max. process pressure (static)

  depending on the configuration up to 500 bar

• Operating temperature range

  PT100 TF iTHERM StrongSens:
  -50 °C ...500 °C
  (-58 °F ...932 °F)
  PT100 TF iTHERM QuickSens:
  -50 °C …200 °C
  (-58 °F …392 °F)
  PT100 WW:
  -200 °C ...600 °C
  (-328 °F ...1.112 °F)
  PT100 TF:
  -50 °C ...400 °C
  (-58 °F ...752 °F)
  Typ K:
  max. 1.100 °C
  (max. 2.012 °F)
  Typ J:
  max. 800 °C
  (max. 1.472 °F)
  Typ N:
  max. 1.100 °C
  (max. 2.012 °F)

• Max. immersion length on request

  up to 1.500,0 mm (59,06'')
