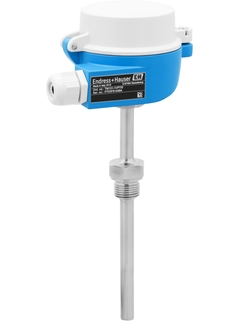

Intrinsically safe temperature sensor (RTD / TC assembly) with manufactured thermowell or for use with existing thermowell. An optional head transmitter with all common communication protocols – Bluetooth® technology inclusive – and special features like iTHERM QuickNeck for tool-free, easy recalibration, vibration-resistant and fast-response sensor and thermowell technology (iTHERM StrongSens, QuickSens) as well as hazardous area approvals ensure enhanced measurement accuracy and reliability.
Universal range of application
Measuring range: –200 to +1.100 °C (–328 to +2.012 °F)
Pressure range up to 100 bar (1450 psi)
Degree of protection: up to IP 68
Vibration-resistant sensor elements up to 60g
Improved ease of maintenance (sensor replacement without process shutdown), easy and safe recalibration of the measuring point
Dual Seal: Second process barrier with failure indication offering valuable health status information
iTHERM QuickSens: fastest response times 1.5 s for optimum process control
iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety
iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration
Bluetooth® connectivity (optional)
International certification: explosion protection according to ATEX, IECEx, CSA C/US and NEPSI
Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
fastest response time with thermowell t90 starting at below 10 s
depending on configuration
depending on the configuration up to 100 bar
PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
up to 4.500,0 mm (177'')
