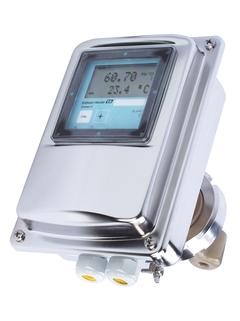

Smartec CLD132 is a measuring system for inductive conductivity. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a stainless steel temperature sensor that gives you an ultrafast temperature response for reliable measurement in separation applications.
Smartec CLD132 is suited to applications such as:
Alkaline/acid concentration control in remaking
Phase separation of product/water and product/product mixtures in pipe systems
Product monitoring
Smartec CLD132 features the following protocols and interfaces:
0/4...20mA
HART
PROFIBUS DP
PROFIBUS PA
Engineered for quick temperature response
Low risk of soiling due to encapsulated sensor
Insensitive to polarization
100 µS/cm - 2000 mS/cm
max. 140°C (max. 30 min.)
284°F (max. 30 min.)
max. 12 bar (90°C)
(174 psi(194°F))
