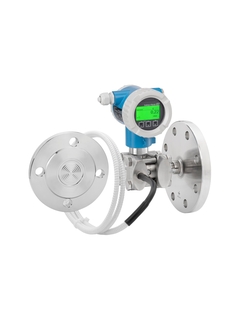

This transmitter belongs to the new Deltabar generation. The device is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. plugged impulse lines.
Pressure measuring ranges up to 40 bar (600 psi)
Process temperatures up to 400 °C (752 °F) with diaphragm seal
Static pressure: up to 160 bar (2400 psi)
Accuracy: up to +/- 0.075%
Wireless control of the device in hard to reach areas with the SmartBlue App and a Bluetooth® connection
Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
With Heartbeat Technology you are able to verify the health of the device while the process is running. This increases plant availability.
Simple indication of device status - display changes from green to red when diagnostic messages occur
Standard:
up to 0.1 %
-40°C...+400°C
(-40°F...+752°F)
100 mbar...40 bar
(1.5psi...600 psi)
316L, AlloyC,
Tantal, Monel
PTFE, Gold
316L, AlloyC,
Tantal,
Monel
PTFE
Gold
100 mbar...40 bar
(1.5 psi...600 psi)
