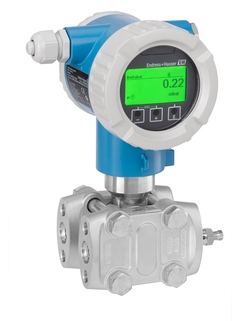

Deltabar PMD75B - differential pressure transmitter

Field of application

This transmitter belongs to the new Deltabar generation. The device is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. plugged impulse lines.

Benefits

• With Heartbeat Technology you are able to verify the health of the device while the process is running. This increases plant availability.

• Simple indication of device status - display changes from green to red when diagnostic messages occur

• Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

• Control the device wireless in hard to reach process areas with the SmartBlue App

Specs at a glance

• Accuracy

  Standard:
  up to 0.05 %
  Platinum:
  up to 0.035 %

• Max. measurement error

  Standard:
  up to 0.05 %
  Platinum:
  up to 0.035 %

• Measuring range

  10 mbar...250 bar
  (0.15 psi...3750 psi)

• Process temperature

  -40°C...+110°C
  (-40°F...+230°F)

• Pressure measuring range

  10 mbar...250 bar
  (0.15 psi...3750 psi)

• Main wetted parts

  316L, AlloyC,
  Tantal, Monel,
  Gold

• Max. process pressure

  420 bar (6300 psi)

• Material process membrane

  316L, AlloyC,
  Tantal,
  Monel,
  Gold

• Wetted materials

  316L,
  AlloyC,
  Tantal,
  Monel,
  Gold

• Measuring cell

  10 mbar...250 bar
  (0.15 psi...3750 psi)
