Over 6 million installed Liquiphant point level switches in the field worldwide prove the day-to-day realiability of this device. With its active sensor technology you always be sure that your device is working correctly.
In addition there is no need of adjustment to different media.

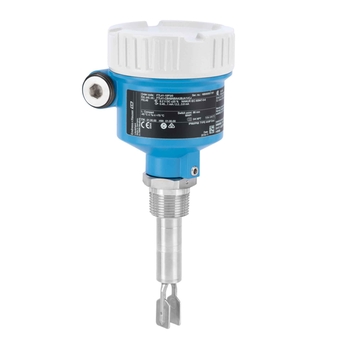

Point level switch with extension tube for all liquids.
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40bar (-14.5 to +580psi)
Sensor material: 316L
International explosion protection certificates, WHG
One measuring system for any liquid. Simple to use with plug and play functionality based on active sensor technology
Better long-term stability compared to float switches
Repeatability of switching point
Universal use in all pumpable liquids
No need of maintenance
-40 °C...+150 °C
(-40 °F...+302 °F)
Vacuum...40 bar
(Vacuum...580 psi)
0.5 g/cm³
(0.4 g/cm³ optional)
