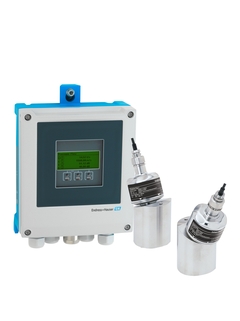

Prosonic Flow I 400 combines insertion sensor technology with the benefits of our Proline 400 transmitters, such as Heartbeat Technology for safe process monitoring and web server access for easy installation and operation. Welded directly into the pipe wall, Prosonic Flow I 400 is especially suitable for large pipelines such as water distribution lines and projects where a fixed device installation is necessary.
The measuring principle is independent of density and conductivity
Bidirectional flow measurement of water and wastewater
Device properties:
Supports two parallel measurement paths
For large diameters: DN 200 to 4000 (8 to 160")
Medium temperatur: –40 to +80 °C (–40 to +176 °F)
Transmitter housing made of durable polycarbonate or aluminium
Remote version for wall mounting
Integrated data logger: measured values monitoring
Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 4000/160")
Long-term stable signal – maintenance-free direct installation of the sensor into the medium
Process transparency – diagnostic capability
Safe operation – no need to open the device due to display with touch control, background lighting
Full remote access – web server
Integrated diagnostics, verification and monitoring – Heartbeat Technology
Volume flow: ±2% o.r. above DN200
0 to 15 m/s (0 to 50 ft/s)
–40 to +80 °C (–40 to +176 °F)
N/A
Insertion system:
Sensor holder 1.4301 (304), 1.4404 (316L)
Sensor housing 1.4301 (304), 1.4404 (316L)
